Ferrite DJ Speaker 15 Inch 410 Watt Model YJY15400 Speaker

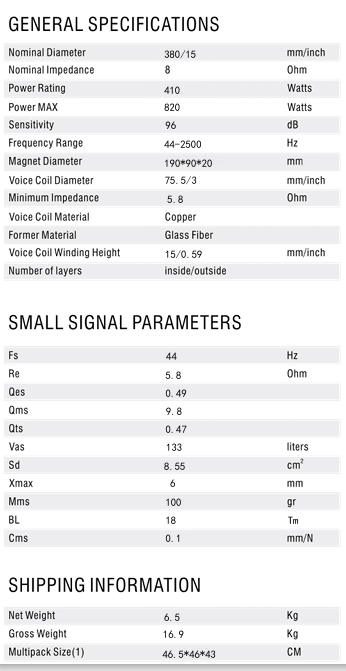

Nominal Diameter– 380/15 mm/inch

Nominal Impedance– 8 Ohm

Power Rating– 410 Watts

Power MAX– 820 Watts

Sensitivity– 96 dB

Frequency Range– 44-2500 Hz

Magnet Diameter– 190*90*20 mm

Voice Coil Diameter– 75.5/3 mm/inch

Minimum Impedance– 5.8 Ohm

Voice Coil Material– Copper

Former Material– Glass Fiber

Voice Coil Winding Height– 15/0.59 mm/inch

Number of layers– inside/outside

Share On

Description

The YJY15400 is a high-performance 15-inch ferrite speaker, delivering 410 Watt RMS power and 820 Watt peak power, designed for DJ, PA and live sound reinforcement.
With a sensitivity rating of 96 dB, it ensures high output efficiency with minimal power consumption.
Features a 3-inch (75.5 mm) copper voice coil with inside/outside winding on a glass fiber former, providing excellent thermal stability and extended performance.
The frequency response of 44 Hz – 2.5 kHz ensures rich bass with accurate midrange output, ideal for full-range audio systems.
Built using a 190×90×20 mm Y35 ferrite magnet, delivering strong magnetic flux for precise cone control and improved sound clarity.
Designed with a voice coil winding height of 15 mm (0.59 inch) for enhanced linear excursion and better power handling.
8 Ohm nominal impedance with a minimum impedance of 5.8 Ohm, making it suitable for standard amplification systems.
Constructed with rugged materials and optimized for high durability, ideal for both portable and fixed installation use.
